TOTEM S Laser Engraving Machine

Catalogue
TOTEM S Laser Engraving Machine
4.2 6 rating
Engraving Machine - powerful laser, 0.01mm accuracy, 300×300mm carving area, supports jpg/bmp/svg/G code image formats, suitable for stainless-steel/aluminium/plastic/ceramic/wood/bamboo/paper/leather/rubber and more, Micro USB connection
Code:  TTGP_01 Product Number:  620301001 Producer's Website:

Don't like the alternatives? Choose from the full product list

Sanders Sanders Sanders Two Trees Sanders Two Trees


TOTEM S Laser Engraving Machine Discontinued

TOTEM S Laser Engraving Machine

Key features engraving machine

Totem S

  • Possibility of using different materials
  • Robust construction allows high precision
  • Unlimited carving height
  • Different engraving modes
  • Supports jpg, bmp, svg and G code formats
  • Everything you need is in the package
  • Works with Benbox, GrblController, LiteFire, Laser GRBL
  • Simple control

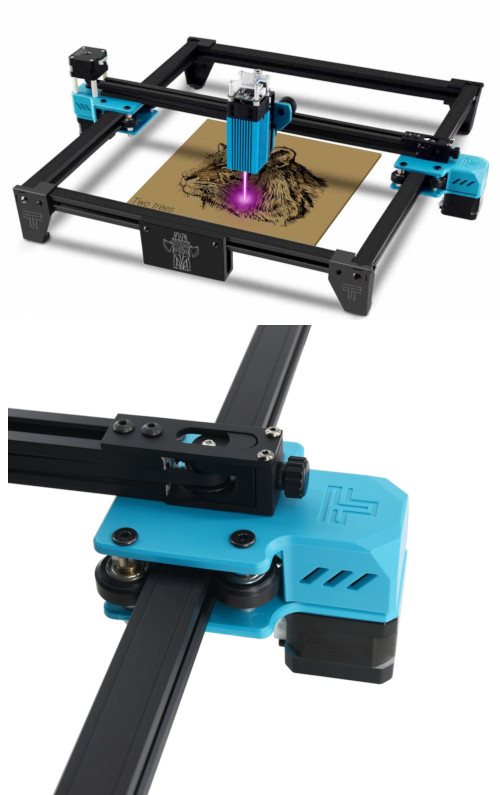

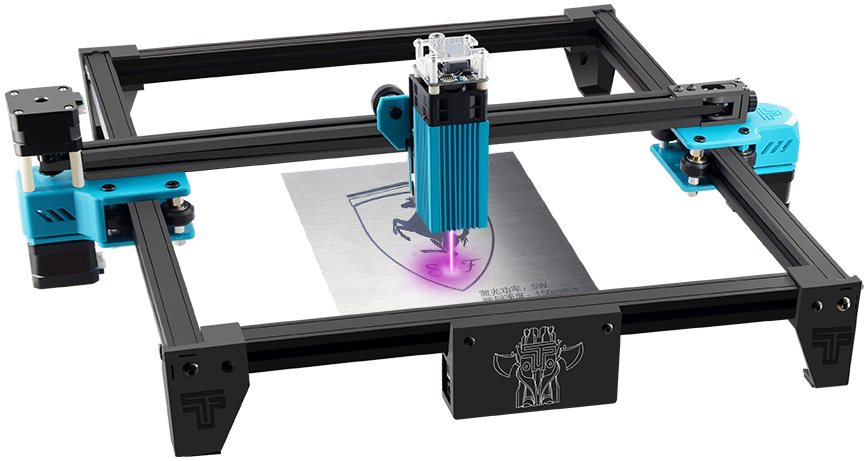

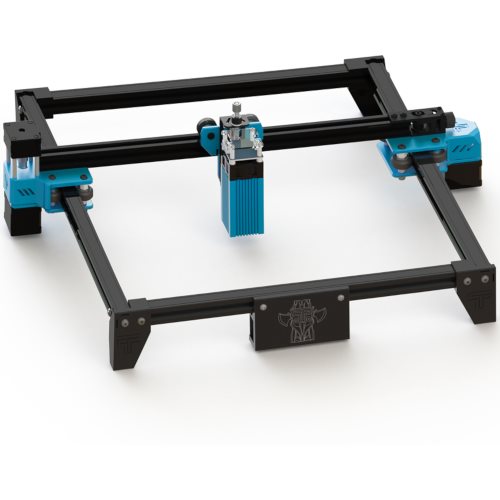

Laser engraving machine totem S
Highly Efficient Engraving
Totem S is a professional tool for engraving and carving various materials. It has a large working area of 300×300mm and unlimited carving height. The powerful laser with a light output of up to 5.5W, a wavelength of 445nm and a fixed focus with a spot width of just 0.08mm delivers incredibly precise results. Three high-precision stepper motor drivers move the laser module, while the stability of the device itself is ensured by non-slip pads. You can use all the most popular carving software, including Benbox,GrblController, LiteFireandLaser GRBL.
Spacious Engraving Area
You will enjoy using a large 300×300mm engraving area with no restriction on carving height.

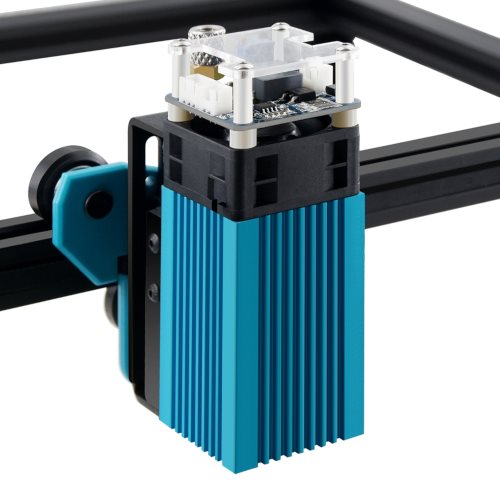

Powerful Laser Module
A cooled laser module with a maximum optical power of up to 5.5W and a wavelength of 445nm ensures the best results.
Engraving Mode Options
There are several engraving modes to choose from, such as photo, text, scan, outline and pixel laser engraving.

No alternative text for the photo!


Use the Totem Engraving Machine S
With a Wide Range of Materials
The Totem S Engraving Machine is suitable for engraving various materials, including stainless steel, aluminium, plastic, ceramics, wood, bamboo, paper, leather, rubber and leather sponge paper. It is not suitable for engraving other metals, stone, glass, reflective or transparent materials.

Parameters—Totem S Engraving Machine

  • Carving area: 300×300mm
  • Engraving accuracy: 0.01mm
  • Maximum cutting height: Unlimited
  • Optical laser power: 5000-5500mW
  • Laser wavelength: 445±5nm
  • Laser width: ~0.08mm
  • Beam: LD + FAC + C-lens
  • Variable focus: No
  • Wattage: 35-40W
  • Input voltage: 100-240V
  • Power supply: 12V, 3A
  • Operating System Support: Windows XP/7/8/10
  • Supported software: Benbox, GrblController, LiteFire, Laser GRBL and more
  • Supported image formats: jpg, bmp, svg, G code
  • Communication port: Micro USB
  • Materials used: Aluminium, plastic
  • Dimensions: 568 × 485 × 56mm
  • Weight: 4.8kg

Specifications can be changed without notice. Images are for illustrative purposes only.

jó napot, meg szeretném rendelni (azonnal a Mexikói úton lehetne, de mivel nincs KP fizetés (cégre akarom, KP fizetés !), így csak a Róbert Károly krt. 54-58 adja mint lehetőség ... kitőltöttem az adatokat a szokásos módon de fizetéskor a "Termék már nem vásárolható meg." hibaüzenetet kapom. Milyen megoldást tudnak ajánlani (+36 30 961 8588) köszönöm

Fülöp Huba,
03. 01. 2022,
1 answer
Reply

Tisztelt Ügyfélszolgálat. Ez lézervágó milyen vastag rétegelt lemezt tud átvette átvágni? Üdv: Vígh Balázs

Customer,
19. 11. 2021,
1 answer
Reply
Questions and answers: TOTEM S Laser Engraving Machine
