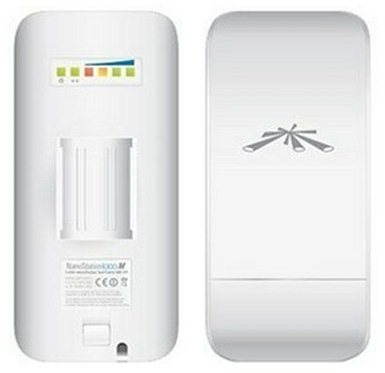

Outdoor access point NanoStation M5 Loco with integrated 13 dBi duplex antenna for 5 GHz band. You can use this access point for Point to Point wireless access or Point after MultiPoint with the maximum possible transfer rate of up to 150Mbps TCP/IP. Compared to the previous NanoStation5, this access point has a stronger processor clocked at 400 MHz and more memory. This makes it possible to connect more than 300 clients in the access point mode.
Ideal for wireless internet providers (WISP). The NanoStation5 Loco also has a very efficient transmission speed for longer distances. In addition, with very low response. Another advantage of the NanoStation M5 Loco is its smaller size. Configuration takes place via a secure web interface. It is as simple as possible, but at the same time extensive and allows for the setting of details such as input sensitivity to the received signal and of course, QoS, traffic shaping, output power control etc.
Additional information:
Frequency:
5.4 - 5.825 GHz
Sensitivity:
-94 (6 Mbps) to -74 (54 Mbps) dBm
Antenna:
2× 13 dBi
Chipset:
Atheros
Processor:
MIPS 24KC, 400 MHz
Memory:
RAM: 32MB
NAND: 8MB
Interface:
LAN port: 1 × RJ45 10/100 Mbps
WiFi
Polarisation:
Horizontal / Vertical
Beam angle:
45° (horizontal)
45° (vertical)
Web Administration:
Simple and clear
AP mode, client or WDS mode
Traffic shaping
QoS
WAN and LAN transparent bridge or routing, without NAT or with NAT
Antenna Polarisation (Vertical / Horizontal / Adaptive)
External antenna output is not available
The strength of the signal to match the particular LED signaling
Max. Output power: 20 dBi
Encryption: WPA, WPA2, 802.1X
Default password: ubnt
Default IP: 192.168.1.20
Default Name: ubnt
Other parameters:
DHCP
Modulation: OFDM
OS: AirOS
In addition, AirOS v3 supports Czech on the device
Power control
Baud rate: 1, 2, 6, 11, 24, 36, 48, 54 Mbps
Compliance: FCC, CE
Standards: 802.11a
Operating mode: AP, Client, WDS
Polarisation: H/V
Operating temperature:
-30 to 80°C
Power supply:
15V, 0.8A
Dimensions:
163 × 81 × 30mm
Weight:
0.18kg
Included in the package:
Power supply
PoE injector
Specifications can be changed without notice. Images are for illustrative purposes only.
